HPE ProLiant DL80 Generation9 (Gen9)

HPE ProLiant DL80 (Gen9)

Do you need an affordable storage server for capacity intensive applications? The HPE ProLiant DL80 Gen9 Server is designed with affordable storage, networking, processor scalability, and manageability in a 2U server for cost conscious service providers and small and medium businesses (SMBs).

Apart from basic IT infrastructure workloads this server is ideal for running storage capacity intensive applications like cold storage and back-up with its compelling cost/GB.

What's new

• Intel® Xeon® E5-2600 v4 processor family offers unparalleled versatility across diverse workloads
• HPE DDR4 SmartMemory 2400 MHz modules for faster performance with data-intensive application workloads
• HPE Trusted Platform Module (TPM) 2.0 averts unauthorized access to servers and delivers enterprise level security to store artifacts used to authenticate the server platforms
• 900W AC / 240VDC power supply for improved affordability
• Increased capacity hard drives – Large Form Factor (LFF) with up to 10 TB capacity now bringing the DL80 maximum storage capacity to 120 TB SAS/SATA
• 10GbE FlexFabric NICs providing seamless performance upgrade from 1GbE and the economies of 10GbaseT

Technical Specifications:

Processor family

• Intel® Xeon® E5-2600 v3 product family
• Intel® Xeon® E5-2600 v4 product family

Number of processors

• 1 or 2

Processor core available

• 14 or 12 or 10 or 8 or 6 or 4

Processor cache

• 10MB LLC
• 15MB LLC
• 20MB LLC
• 25MB LLC
• 30MB LLC
• 35MB LLC

Processor speed

• 3GHz

Form factor (fully configured)

• 2U

Form factor chassis

• Rack

Power supply type

• (2) Entry-Level

Expansion slots

• (6) For detail descriptions reference the QuickSpecs

Memory, maximum

• 256GB

Memory slots

• 8 DIMM slots

Memory type

• DDR4 SmartMemory

Memory protection features

• Memory Online Spare Mode

Drive description

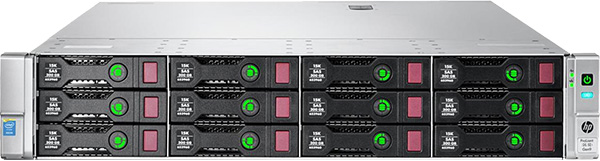

• (12) LFF SAS/SATA/SSD
• (8) LFF SAS/SATA/SSD

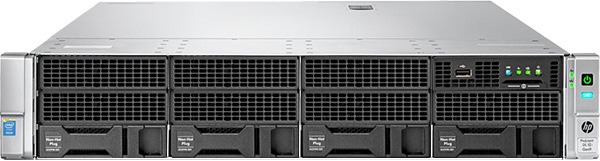

• (4) LFF SAS/SATA/SSD

System fan features

• Hot swap redundant optional

Graphic card

• Up to 1 single width GPU supported

Network controller

• 1Gb 361i Ethernet Adapter
• Optional FlexibleLOM on riser
• Depending on model

Storage controller

• Dynamic Smart Array B140i
• H240 Host Bus Adapter
• Smart Array P440/4GB
• Depending on model

Infrastructure management

• iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials(optional), iLO Scale-Out(optional) iLO Advanced (optional)

Warranty

• 1/1/1 Server Warranty includes one year of parts, one year of labor, one year of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support. Additional Hewlett Packard Enterprise support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to www.hpe.com/services/support
