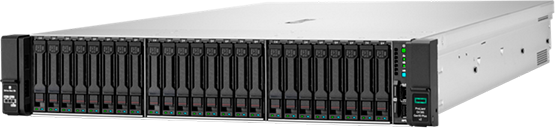

HPE ProLiant DL385 Gen10 Plus V2 Server

Do you need a versatile server with built-in security and flexibility that addresses key applications such as Machine Learning or Deep Learning and Big Data Analytics?

Building on HPE ProLiant as the intelligent foundation for hybrid cloud, the HPE ProLiant DL385 Gen10 Plus v2 server offers the 3rd Generation AMD EPYC 7000 Series Processor, delivering more performance compared to the prior generation




HPE ProLiant DL385 Gen10 Plus V2 8SFF HPE ProLiant DL385 Gen10 Plus V2 - 8 Bay SFF 8 x 2.5 Drive bays. Dual AMD Epyc Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $6,228.45

SFF Small Form Factor Drives

Hot-Swap Drives

8 Drives

AMD EPYC Processor

HPE ProLiant DL385 Gen10 Plus V2 8LFF HPE ProLiant DL385 Gen10 Plus V2 - 8 Bay LFF 8 x 3.5 Drive bays. Dual AMD Epyc Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $6,471.38

LFF Large Form Factor Drives

Hot-Swap Drives

8 Drives

AMD EPYC Processor

HPE ProLiant DL385 Gen10 Plus V2 12LFF HPE ProLiant DL385 Gen10 Plus V2 - 12 Bay LFF 12 x 3.5 Drive bays. Dual AMD Epyc Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $6,756.50

LFF Large Form Factor Drives

Hot-Swap Drives

12 Drives

AMD EPYC Processor

HPE ProLiant DL385 Gen10 Plus V2 16 SFF SATA/SAS HPE ProLiant DL385 Gen10 V2 Plus - 16 Bay SFF 16xSATA/SAS Dual AMD Epyc Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $8,202.69

SFF Small Form Factor Drives

Hot-Swap Drives

16 Drives

AMD EPYC Processor

HPE ProLiant DL385 Gen10 Plus V2 16 SFF (8x SATA/SAS / 8x NVMe) HPE ProLiant DL385 Gen10 Plus V2 - 16 Bay SFF 8xSATA/SAS / 8xNVMe. Dual AMD Epyc Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $8,545.07

SFF Small Form Factor Drives

Hot-Swap Drives

8 + 8 Drives + NVMe

AMD EPYC Processor

HPE ProLiant DL385 Gen10 Plus V2 24SFF HPE ProLiant DL385 Gen10 Plus V2 - 24 Bay SFF 24 x 2.5 Drive bays. Dual AMD Epyc Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $9,229.24

SFF Small Form Factor Drives

Hot-Swap Drives

24 Drives

AMD EPYC Processor

HPE ProLiant DL385 Gen10 Plus V2 24 SFF (8x SATA/SAS / 16x NVMe) HPE ProLiant DL385 Gen10 Plus V2 - 24 Bay SFF - 8SATA/SAS 16xNVMe. Dual AMD Epyc Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $9,349.96

SFF Small Form Factor Drives

Hot-Swap Drives

8 + 16 Drives + NVMe

AMD EPYC Processor


Building on HPE ProLiant as the intelligent foundation for hybrid cloud, the HPE ProLiant DL385 Gen10 Plus v2 server offers the 3rd Generation AMD EPYC™ 7000 Series Processor, delivering more performance compared to the prior generation. With up to 128 cores (per 2-socket configuration), 32 DIMMs for memory up to 3200 MHz, the HPE ProLiant DL385 Gen10 Plus v2 server delivers low cost virtual machines (VMs) with increased security. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL385 Gen10 Plus v2 server offers improved data transfer rates and higher networking speeds. Combined with supportability for graphic accelerators, a more advanced storage RAID solution and storage density, the HPE ProLiant DL385 Gen10 Plus v2 server is the ideal choice for ML/DL and Big Data Analytics.

  • Powered by the 3rd Generation AMD EPYC™ 7000 Series processor with more compute performance compared to the previous generation.
  • Enhanced storage management with Tri-mode storage controllers supporting NVMe/SAS/SATA drives.
  • Supports AMD EPYC™ 7003 processors with 3D V-cache, providing 768 MB of L3 cache per processor.

Workload Optimization

The HPE ProLiant DL385 Gen10 Plus v2 server supports up to 8 single wide or 3 double wide (active/passive) GPUs to accelerate graphic intense workloads.

Harness major compute power and support up to two of the 3rd Generation AMD EPYC™ 7000 Series 64-core 280W processors.

Tri-mode storage controllers enhance storage management coupled with an advanced storage RAID solution and storage density.

It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

360 Degree Security

The HPE ProLiant DL385 Gen10 Plus v2 server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC) to manage secure boot, memory encryption, and secure virtualization.

HPE ProLiant security begins with the corruption-free manufacture of the server and auditing the integrity of every component – hardware and firmware – to provide verification that the server begins its lifecycle through an uncompromised supply chain.

HPE ProLiant servers provide rapid detection of a security-compromised server, even to the point of not allowing it to boot, identifies and contains malicious code, and protects healthy servers.

HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.

When it’s time to retire or repurpose an HPE ProLiant server, one-button secure erase speeds and simplifies the complete removal of passwords, configuration settings and data, preventing inadvertent access to previously secured information.

Intelligent Automation

The HPE ProLiant DL385 Gen10 Plus v2 server simplifies and automates management tasks, establishing a solid foundation for an open, hybrid cloud platform enabled by composability.

Embedded in HPE servers, HPE Integrated Lights-Out (iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Automation and software-defined control reduces time spent on provisioning and maintenance, and reduces deployment time.

Delivered as-a Service

The HPE ProLiant DL385 Gen10 Plus v2 server is supported by HPE GreenLake to simplify IT infrastructure management across your entire hybrid estate. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.

Rapidly deploy a broad portfolio of cloud services such as machine learning operations (ML Ops), containers, storage, compute, virtual machines (VMs), data protection, and more. Workload-optimized, preconfigured solutions can be delivered to your facility quickly, decreasing your downtime.

Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT beyond traditional financing and leasing, offering options that free trapped capital, accelerate infrastructure updates, and provide for on-premises pay-per-use consumption with HPE GreenLake.

Technical Specifications:

Processor Type

  • AMD

Processor Family

  • 3rd Generation AMD EPYC™ 7000 Series

Processor Core Available

  • Up to 64, depending on processor

Processor Cache Installed

  • 128 MB, 256 MB or 768 MB L3 cache, depending on processor model

Maximum Memory

  • 8.0 TB with 256 GB DDR4

Memory Slots

  • 32

Memory Type

  • HPE DDR4 SmartMemory

Memory Protection Features

  • ECC

Drive Supported

  • 8 or 12 LFF SAS/SATA with 4 LFF mid drive optional, 4 LFF rear drive 8 or 24 SFF SAS/SATA with 8 SFF mid drive optional and 4 SFF rear drive optional,16 SFF NVMe Front bay with 8 SFF mid drive optional

Network Controller

  • Choice of optional OCP plus standup, depending on model

Remote Management Software

  • HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses)

Power Supply Type

  • 2 Flexible Slot power supplies maximum, depending on model

Expansion Slots

  • 8 maximum, for detailed descriptions refer to the QuickSpecs

Storage Controller

  • HPE Smart Array SAS/SATA Controllers or Tri-Mode Controllers, refer to the QuickSpecs for more detail

Processor Name

  • AMD EPYC™ 7000 Series Processors

Processor Number

  • Up to 2

Processor Speed

  • 3.7 GHz maximum, depending on processor

Standard Memory

  • 8 TB with 32 x 256 GB RDIMMs

Form Factor

  • 2U

Weight (imperial)

  • 33.25 lb minimum

Weight (metric)

  • 15.1 kg minimum

Product Dimensions (imperial)

  • 3.44 x 17.54 x 29.5 in

Product Dimensions (metric)

  • 8.73 x 44.54 x 74.9 cm
